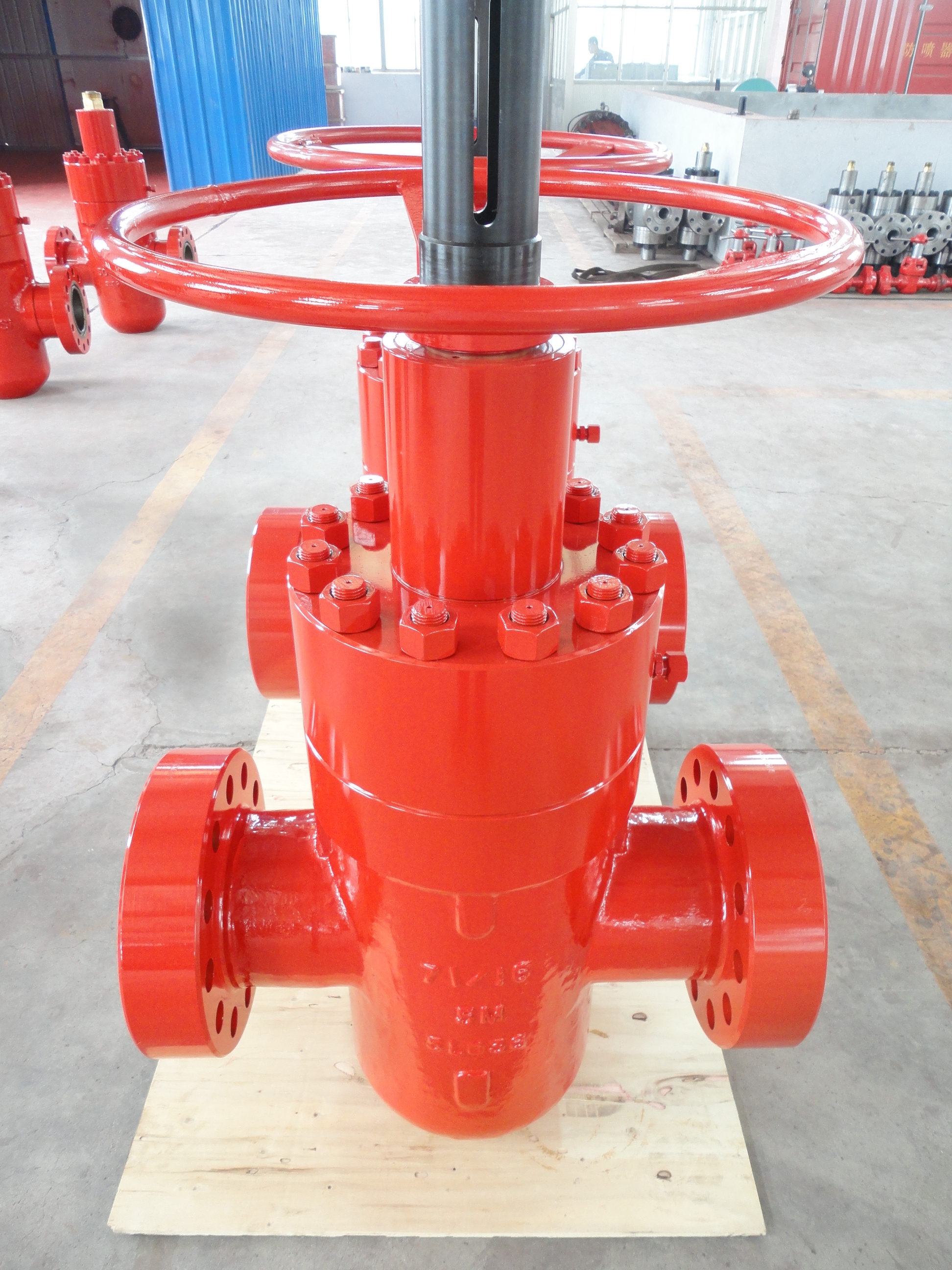

API 6A Wellhead Valve FC Cameron Manual Gate Valve Alloy Steel Valve
FC gate valve, interchangeable with Cameron FC gate valve. The FC gate valve features a non-rising stem with a slab gate, Full-Bore Thru-Conduit Design, Floating Slab Gate and Seats , floating seat ring body bushing design to provide safe dependable service. It is available in flanged or threaded ends in standard bore sizes from 1-13/16 thru 4-1/16 in working pressures of 5,000 psi thru 10,000 psi wp.
Features of FC Gate Valve
* Seat rings, body bushings, gate and stem of gate valve are easily replaced in the field.
* It is easy to mainten and repair the gate valve.
* The gate valve is easy to be operated.
* The structure made the gate valve against corrosion
* The gate valve with long service life.
Techincal parameter of gate valve
| Product Name | Ball Screw Gate Valve/Gate valve/Cameron valve/API6A valve |
| Working Pressure | 5000Psi~20000Psi |
| Nominal Size | 3-1/16”~9” (78mm~230mm) |
| Working Temperature | PU(-29℃～＋121℃) |
| Product Material Level | AA, BB, CC, DD, EE, FF |
| Product Specification Level | PSL1~PSL3G |
| Performance Requirement Level | PR1~PR2 |
| Working medium | Oil, gas, mud, gas containing H2S, CO2 |
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub
YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
