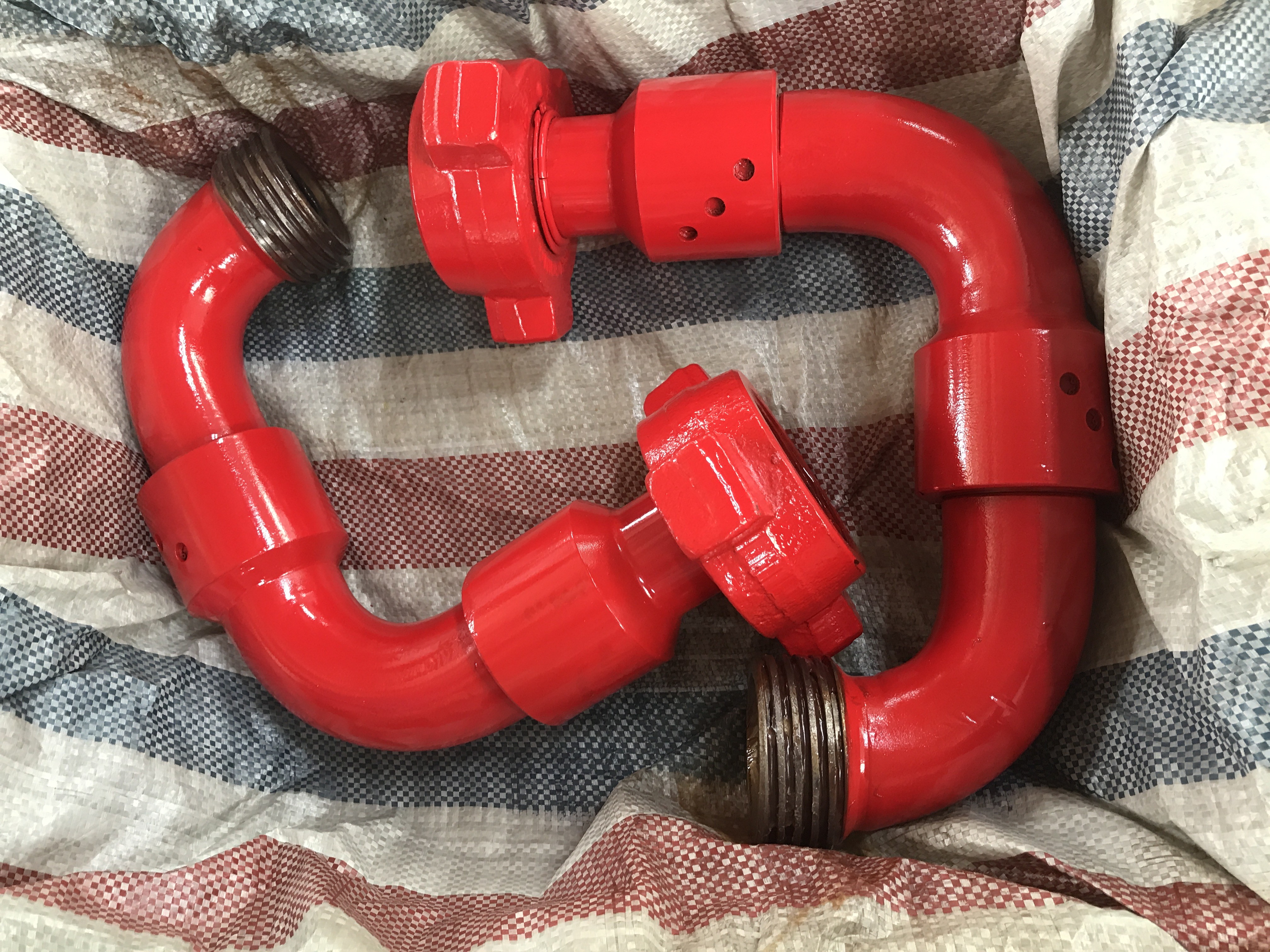

The 1" Fig 1502 Swivel Joint is designed and manufactured as per API 6A specification, it is suitable for normal or low temperature and H2S environments. The sizes of swivel joint is ranging from 1" to 4" and related Working Pressure ranging from 2000psi to 20000psi.
There are long and short radius swivel joints available. Long radius swivel joints can minimize fluid shock, and has better performance of resistance for scouring an corrosion. We also need to use short radius swivel joint for low pressure operation due to limited installation space.
Specification of the Swivel Joint
| Nominal Diameter(in) | Connection Type | Pressure (psi) | Standard Length (mm) A | Standard Length (mm) B | Standard Length (mm) C |
| 1" | Inner Thread | 10000 | 181 | 189 | 181 |
| 1" | 1502(M*F) | 15000 | 213 | 188 | 213 |
| 1" | 1502(M*F) | 15000 | 213 | 188 | 213 |
| 1.5" | Inner Thread | 10000 | 202 | 238 | 202 |
| 1.5" | 1502(M*F) | 15000 | 257 | 238 | 257 |
| 1.5" | 1502(M*F) | 15000 | 257 | 238 | 257 |
| 2" | Inner Thread | 10000 | 229 | 272 | 229 |
| 2" | 1502(M*F) | 15000 | 277 | 272 | 277 |
| 2" | 1502(M*F) | 15000 | 277 | 272 | 277 |
| 2" | 1502(F*F) | 15000 | 224 | 272 | 277 |
| 2" | 2002(M*F) | 20000 | 277 | 275 | 315 |
| 2" | 2002(M*M) | 20000 | 318 | 277 | 318 |
| 3" | Inner Thread | 15000 | 327 | 417 | 327 |
| 3" | 1502(M*F) | 15000 | 368 | 417 | 366 |
| 3" | 1502(M*F) | 15000 | 366 | 417 | 366 |
| 3" | 2002(M*F) | 20000 | 518 | 538 | 518 |
| 4" | 1002(M*F) | 10000 | 409 | 460 | 411 |
| 4" | 1002(M*F) | 10000 | 404 | 460 | 411 |
| 4" | 1502(M*F) | 15000 | 518 | 538 | 518 |
